Dobot CR 30H Standard Edition Collaborative Robot
In stock
- BRAND:
- DOBOT
- PART #:
- 1200000366
- ORIGIN:
- China
- Warranty:
- 36 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- Dobot-CR-30H

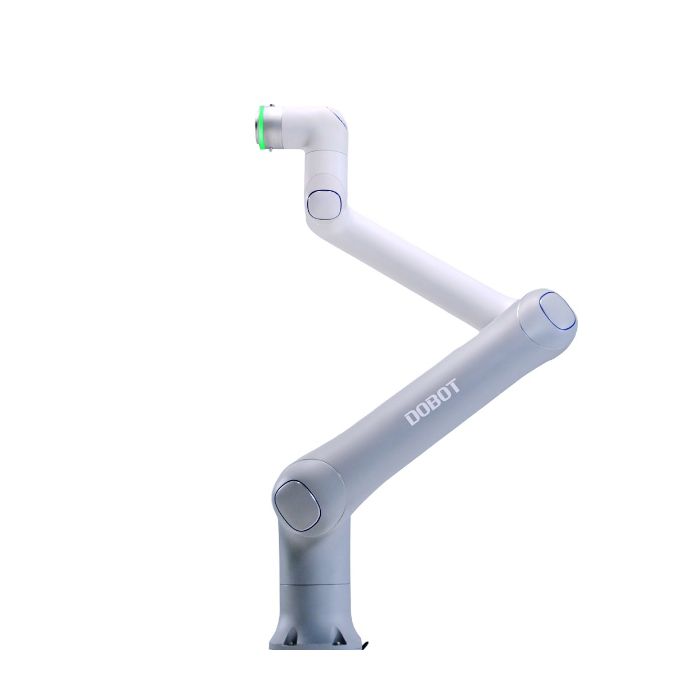

Dobot CR 30H Standard Edition Collaborative Robot
Dobot CR 30H Standard Edition Collaborative Robot
Designed for high-end industrial automation that demands superior performance, stability, and efficiency, the CR 30H represents a breakthrough in heavy-duty collaborative robotics. With a record-breaking 300°/s joint speed, the fastest in its class, it shatters productivity barriers by perfectly balancing high payload capacity, blazing speed, and exceptional stability.
Product information and specifications
Weight: 100 kg
Maximum Payload: 30 kg
Reach: 1800 mm
Joint Motion Range:
J1, J2, J4, J5, J6: ±360°
J3: ±163°
Maximum Joint Speeds:
J1 and J2: 150°/s
J3: 200°/s
J4, J5, and J6: 300°/s
Power supply: 0/12/24 V, with a continuous current of 2 A and peak current of 3 A
Repeatability: ±0.05 mm
Ingress Protection Rating: IP65
Noise Level: 70 dB(A)
Operating Temperature Range: 0°C to 50°C
Mounting Options: Floor, wall, or ceiling mounting supported
Cable Length: 6 meters (from robot base to controller cabinet)
Materials: Aluminum alloy, ABS plastic, and rubber
